Re: My E11 Blaster Build.WIP

Post by batmanreturns »

stunning commitment to attention to detail. :cool:
"never be afraid to raise your voice for honesty and truth and compassion against injustice and lying and greed. if people all over the world would do this....it would change the earth." -w.faulkner.
Top
User avatar
TIE1138
Lieutenant
Lieutenant
Posts: 120
Joined: Sat Aug 08, 2015 10:02 am
Country: New Zealand
Location: Wanganui

Re: My E11 Blaster Build.WIP

Post by TIE1138 »

Thanks for that batmanreturns. I am enjoying doing this.
Attachments

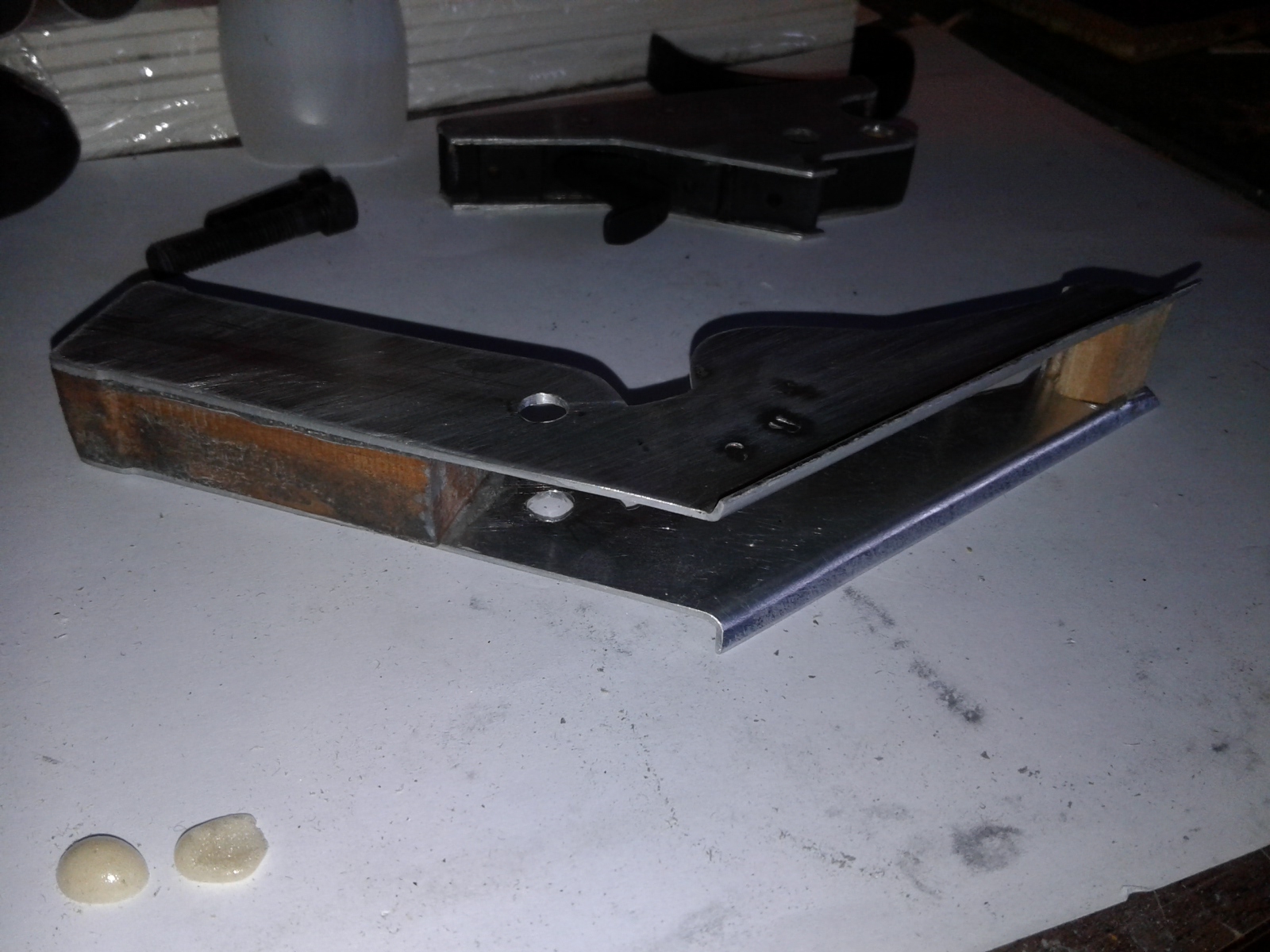

Once that was done,I folded the top edges to fit into the top of the grip. After test fitting in the grip I cut a piece of MDF and glued it in-between the bottom of the two sides of the mount
Once that was done,I folded the top edges to fit into the top of the grip. After test fitting in the grip I cut a piece of MDF and glued it in-between the bottom of the two sides of the mount

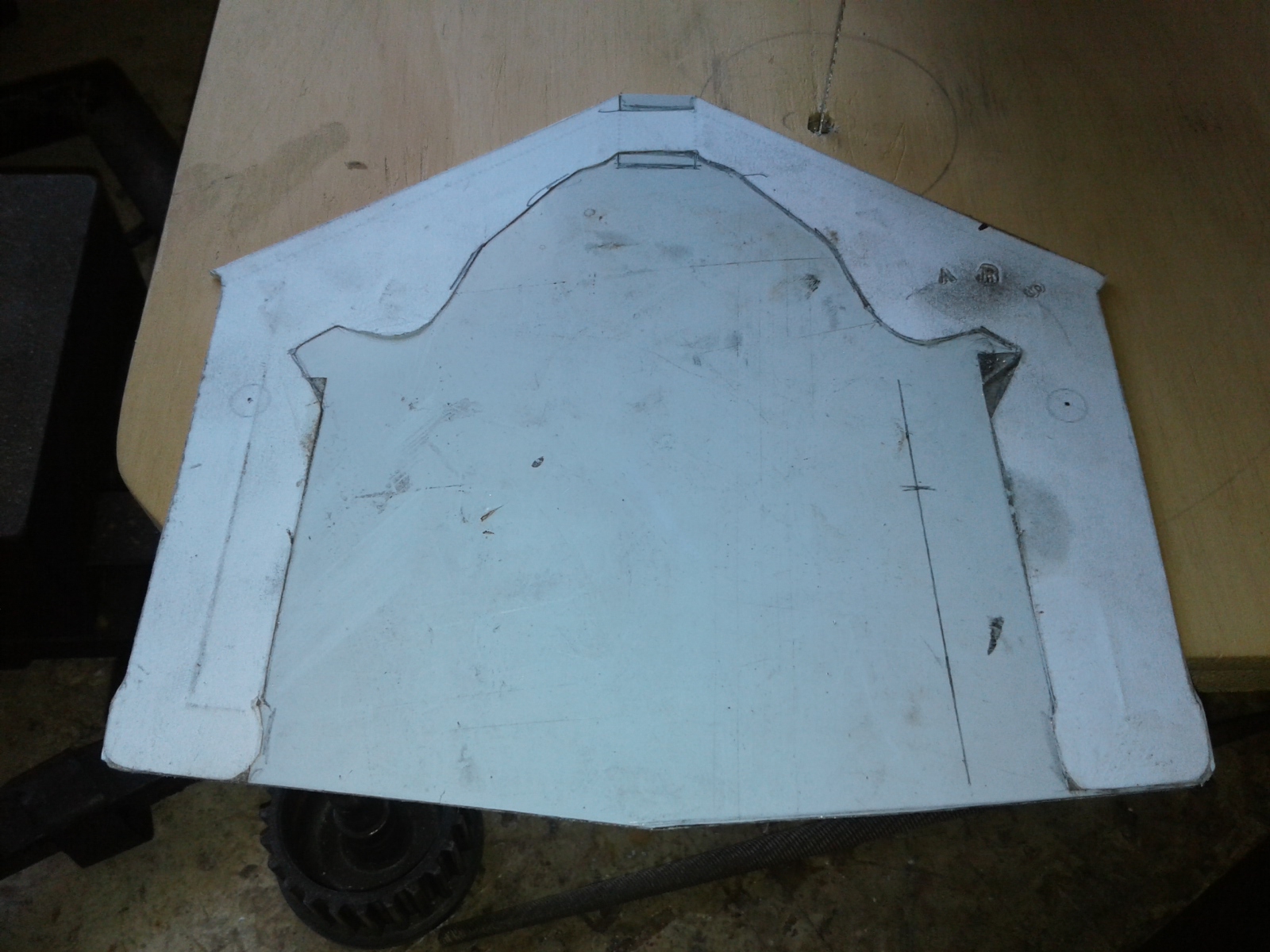

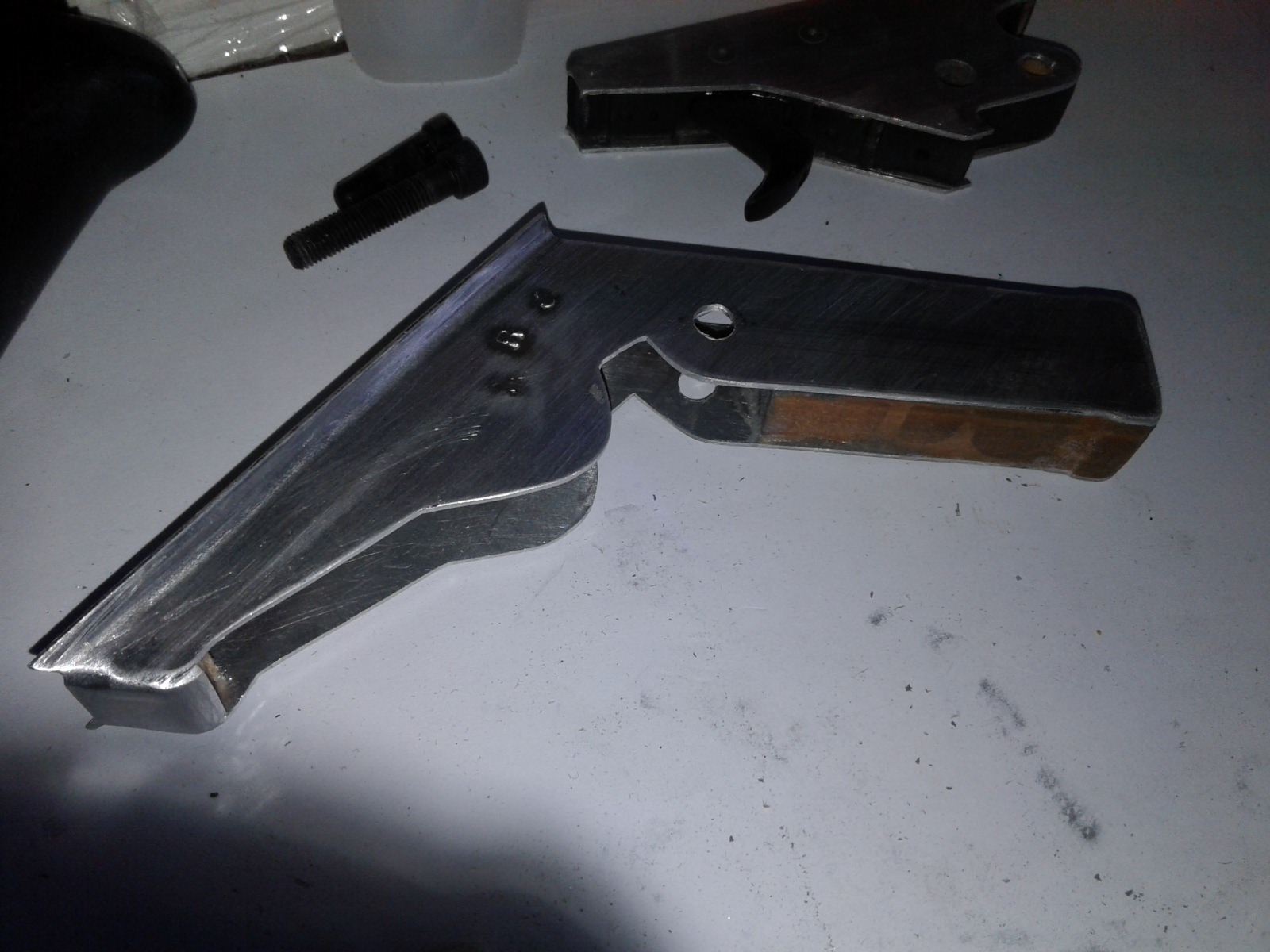

Next step is to cut out this template for the grip mount and fold up and clean the edges
Next step is to cut out this template for the grip mount and fold up and clean the edges

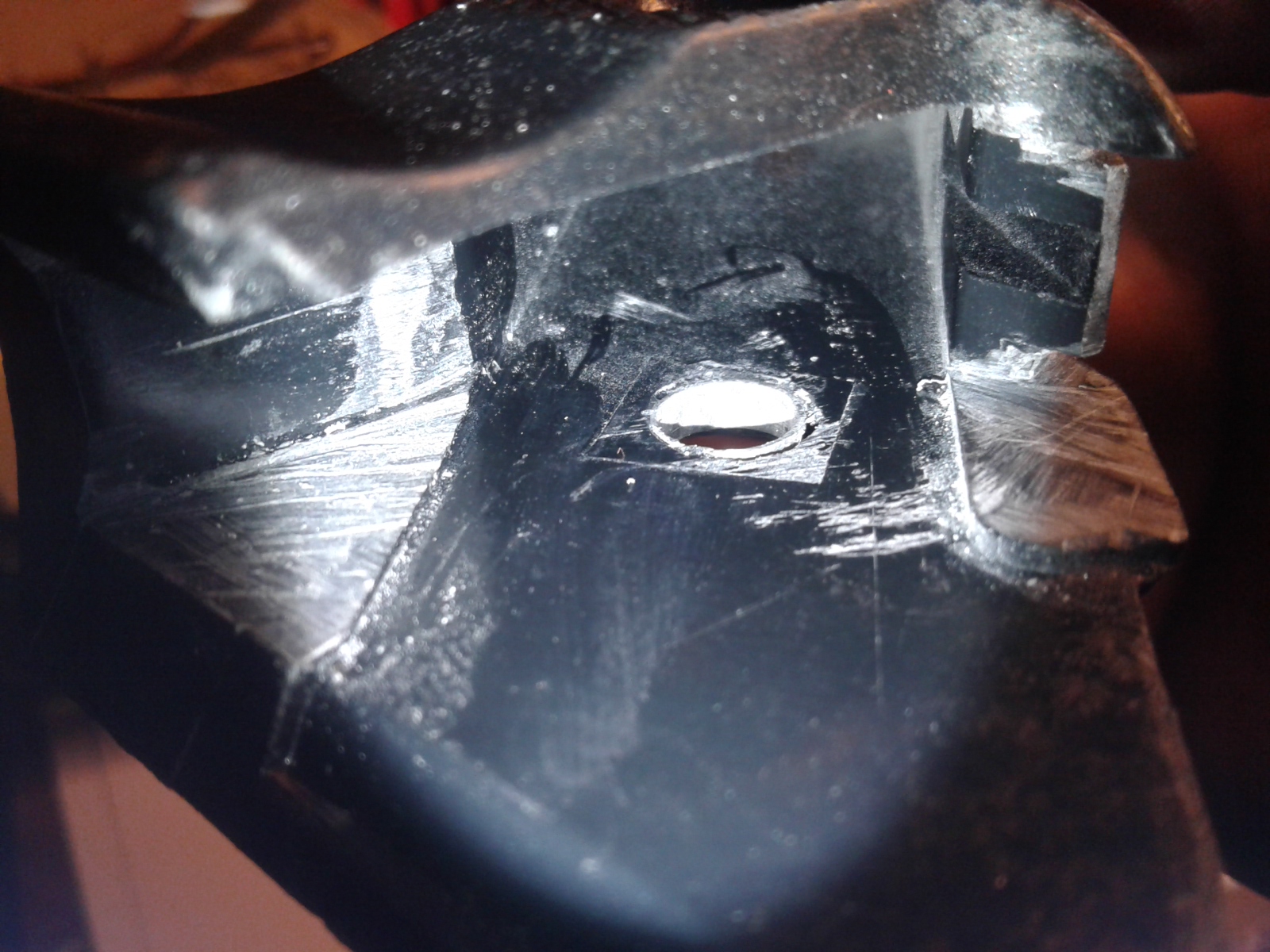

Another closeup
Another closeup

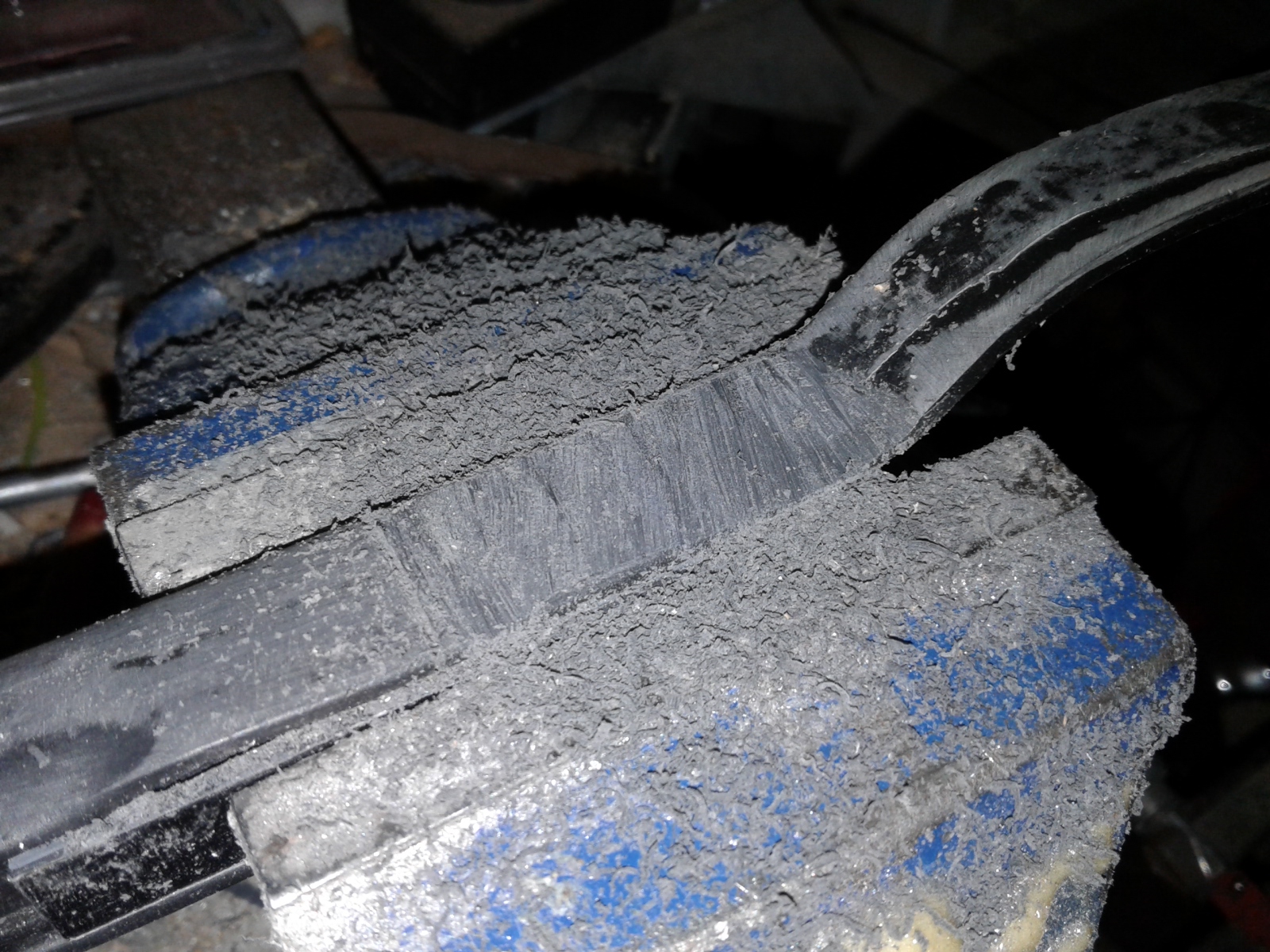

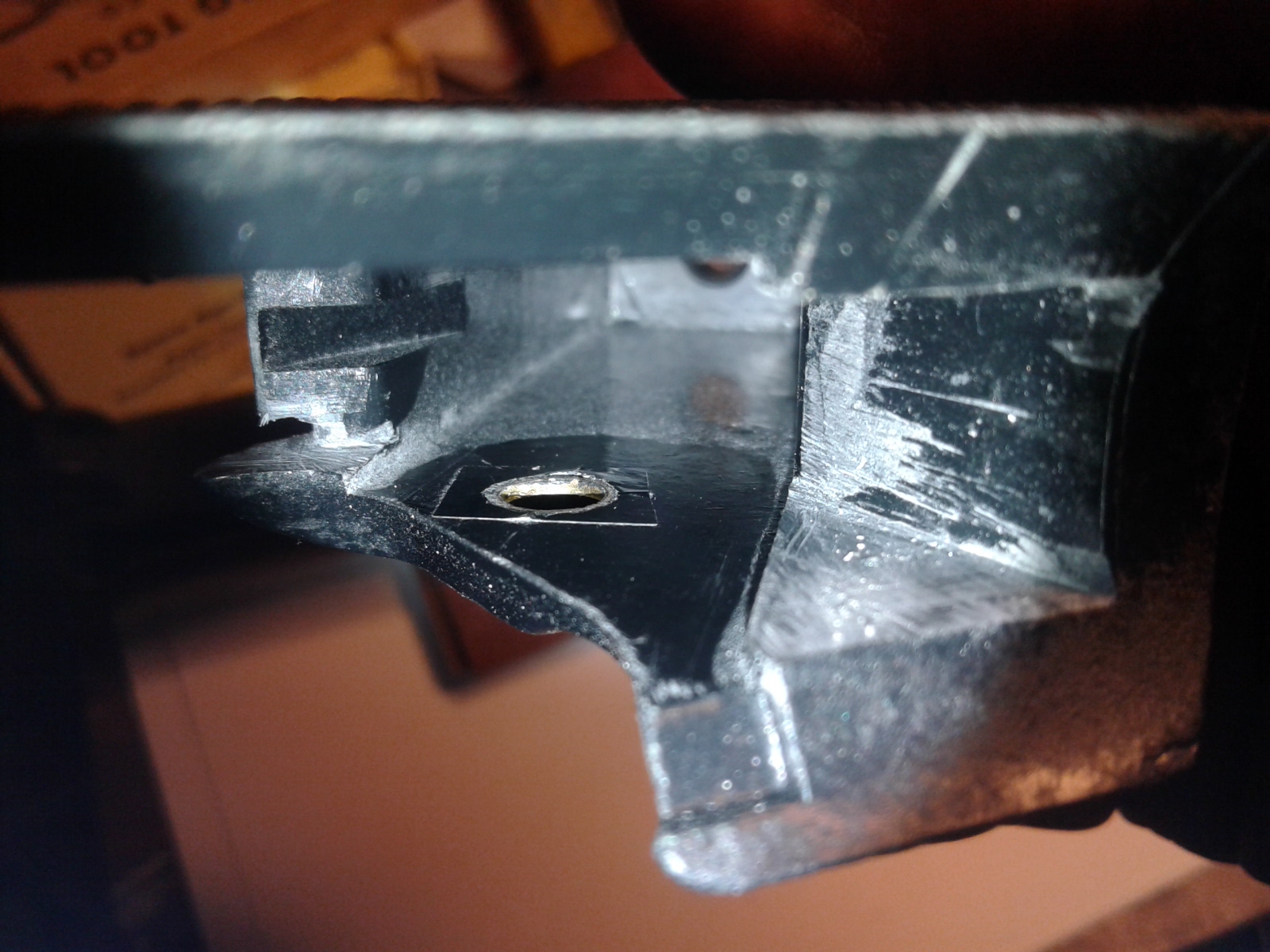

Grinding out the inside of the grip
Grinding out the inside of the grip
Top
User avatar
TIE1138
Lieutenant
Lieutenant
Posts: 120
Joined: Sat Aug 08, 2015 10:02 am
Country: New Zealand
Location: Wanganui

Re: My E11 Blaster Build.WIP

Post by TIE1138 »

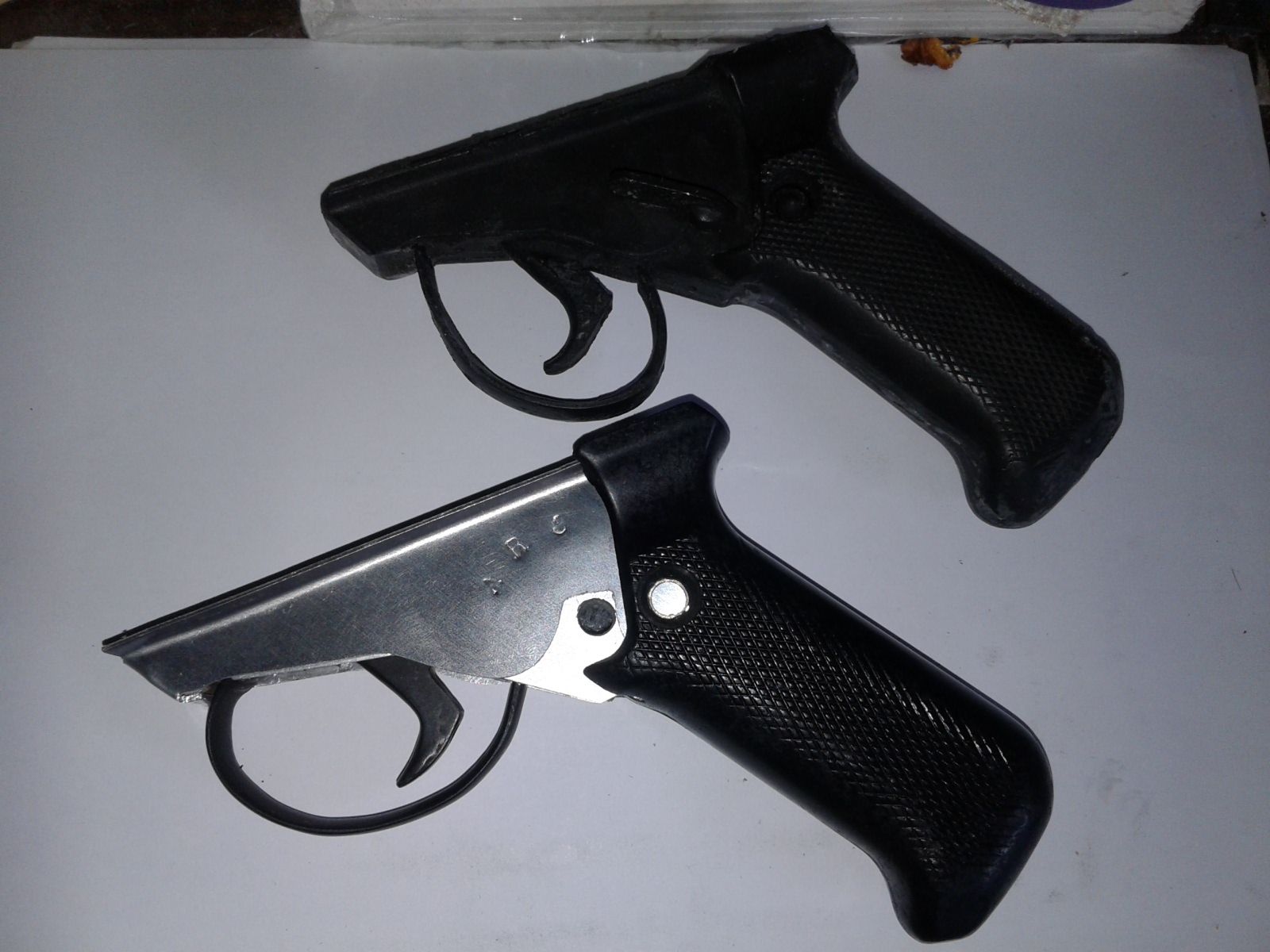

More pics of the trigger group as progress is made and a comparison pic of a casting from Oota and the one I made with bought grip added. Note the difference in the guard position. It appears that this was common on some Sterlings. If I rotate the guard on the housing, it seems to match the position on Oota's casting from an original.
Attachments
Top
User avatar
oota goota
High Colonel
High Colonel
Posts: 1908
Joined: Tue Mar 23, 2010 12:08 am
Country: New Zealand
Location: Taranaki
Contact:
Contact oota goota

Re: My E11 Blaster Build.WIP

Post by oota goota »

wow Nick you have gone next level on this e-11 well done!
Top
User avatar
TIE1138
Lieutenant
Lieutenant
Posts: 120
Joined: Sat Aug 08, 2015 10:02 am
Country: New Zealand
Location: Wanganui

Re: My E11 Blaster Build.WIP

Post by TIE1138 »

Thanks Oota. I have modified the Folding Stock Frame as well.
Top
User avatar
TIE1138
Lieutenant
Lieutenant
Posts: 120
Joined: Sat Aug 08, 2015 10:02 am
Country: New Zealand
Location: Wanganui

Re: My E11 Blaster Build.WIP

Post by TIE1138 »

Here are some more pics
Attachments

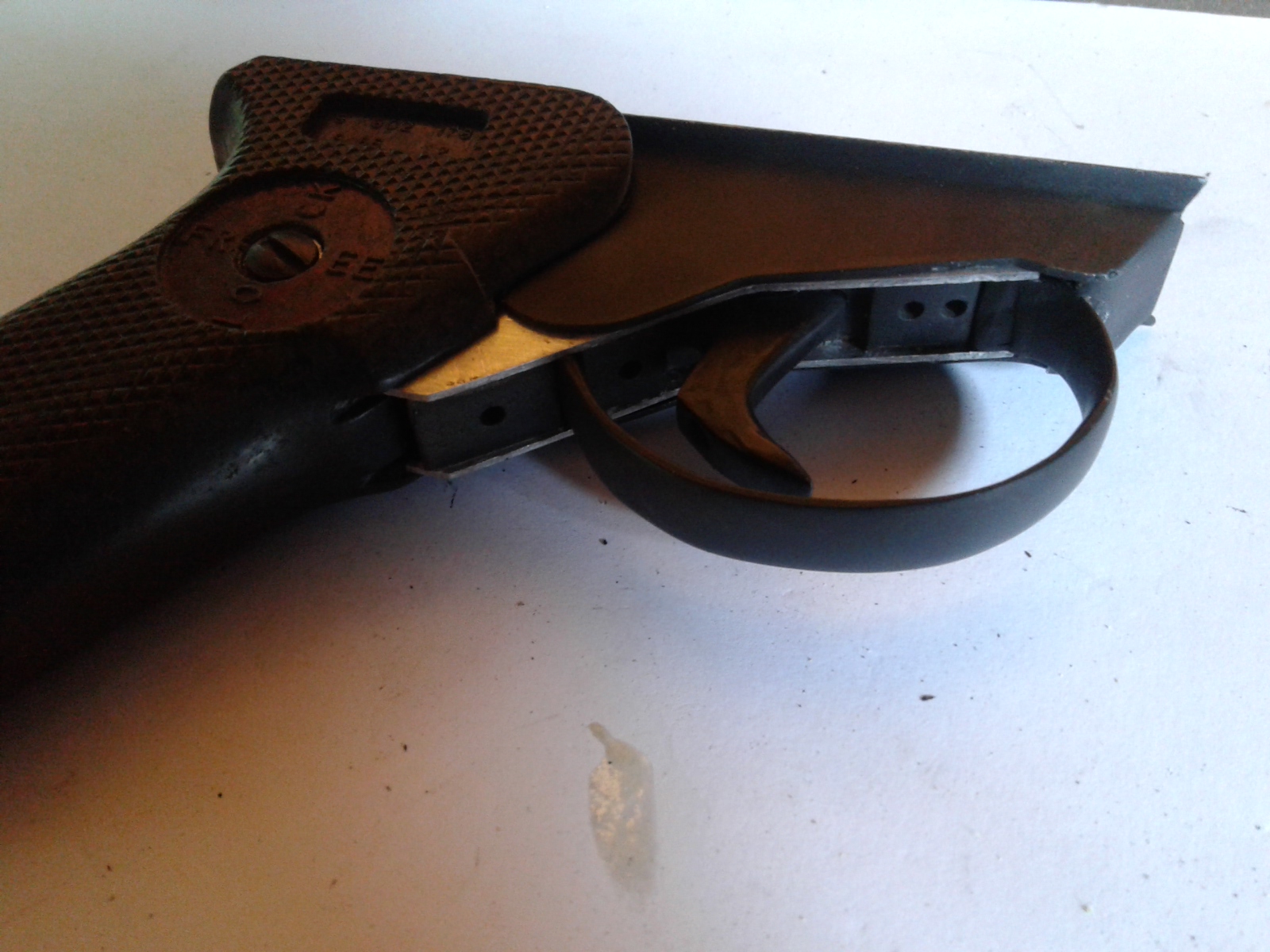

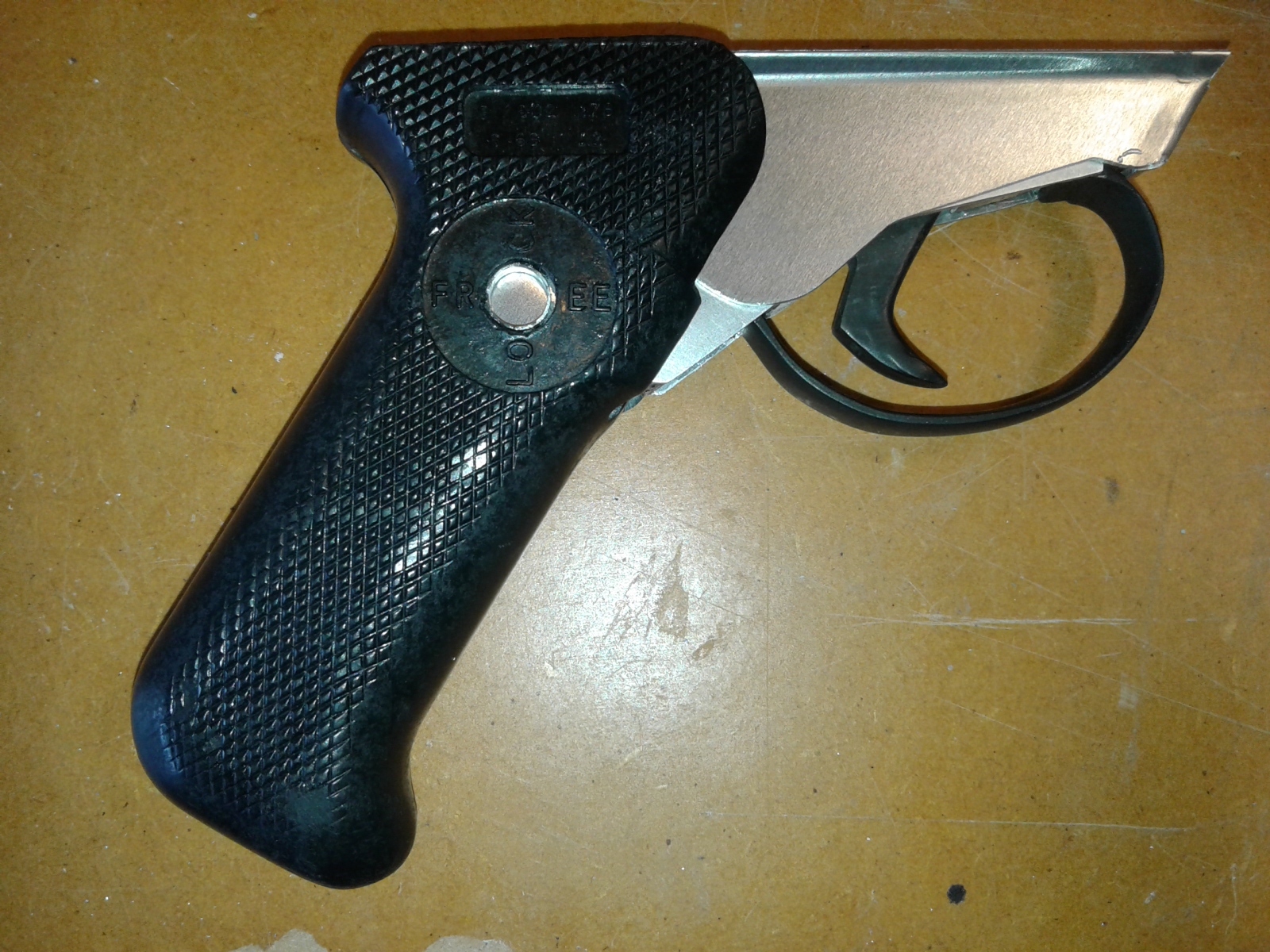

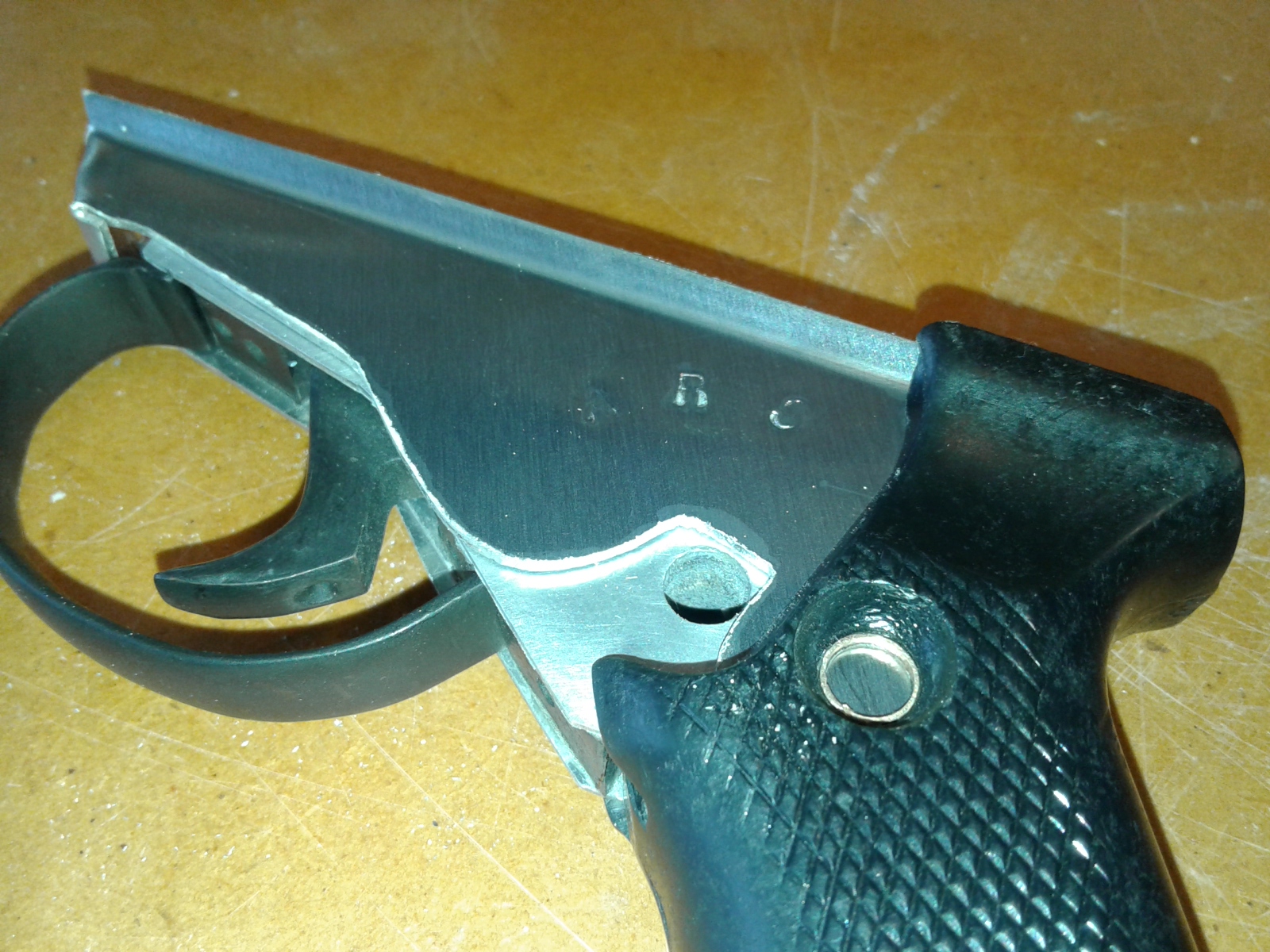

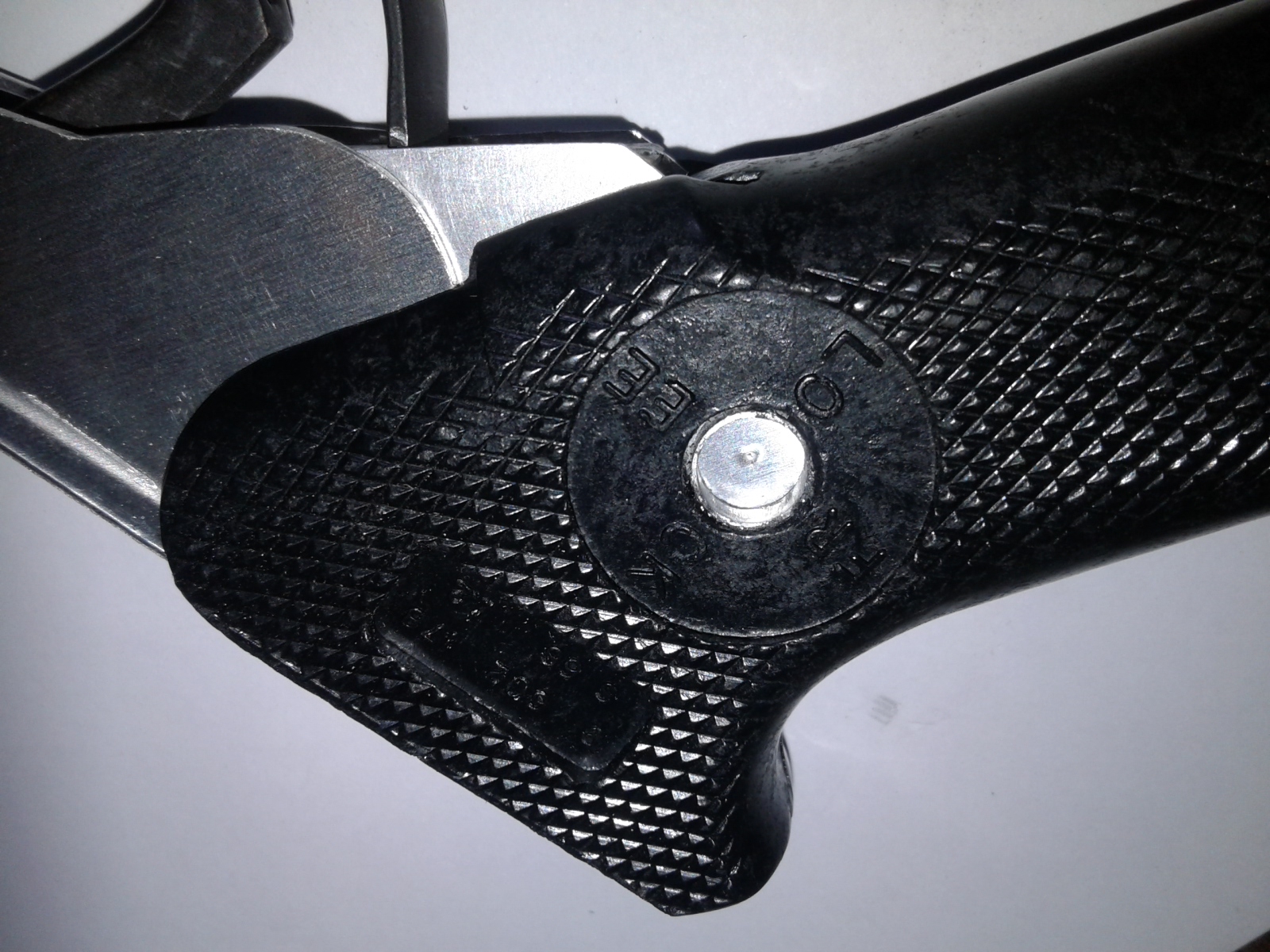

Together again for a test fit.
Together again for a test fit.

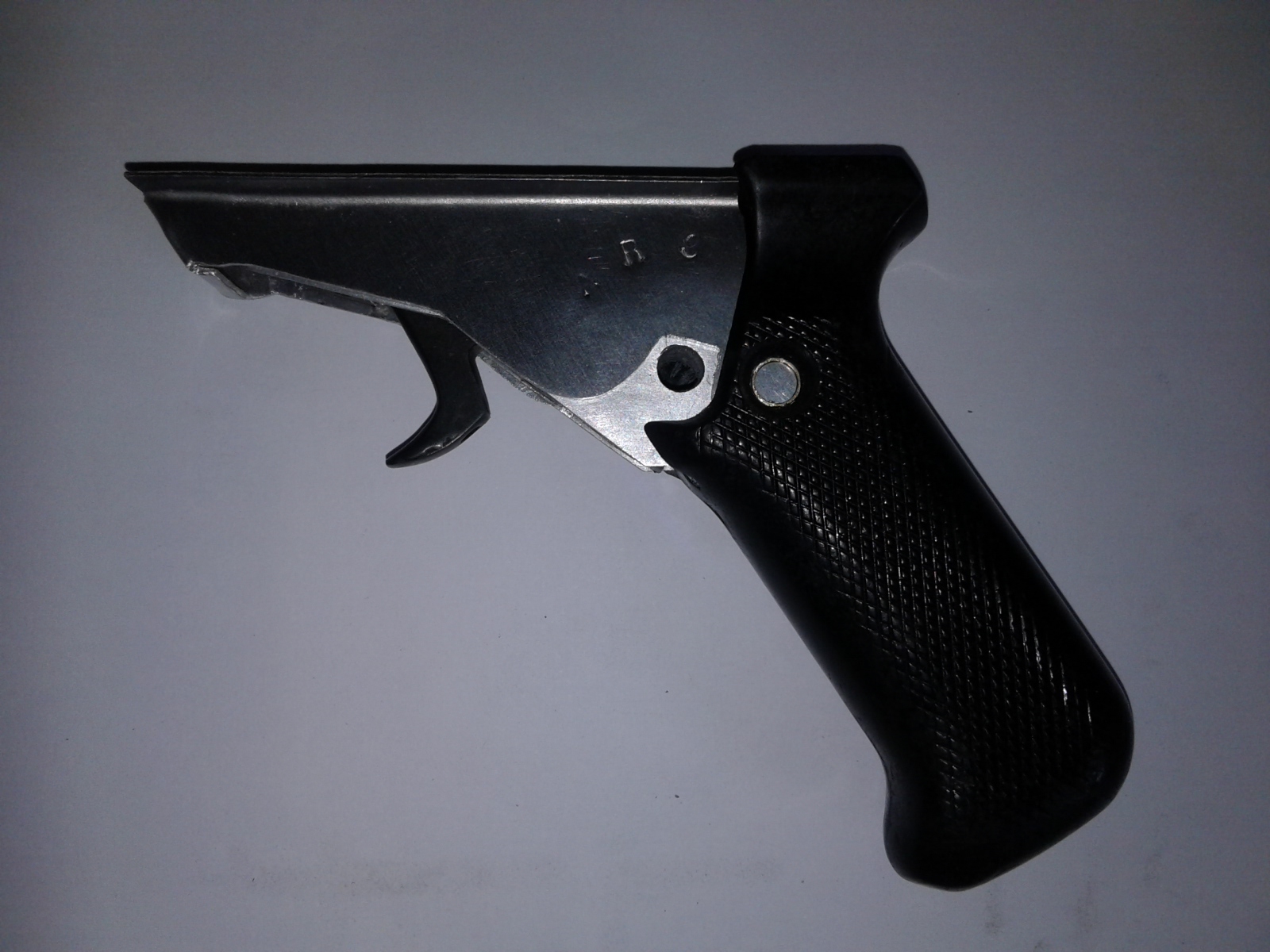

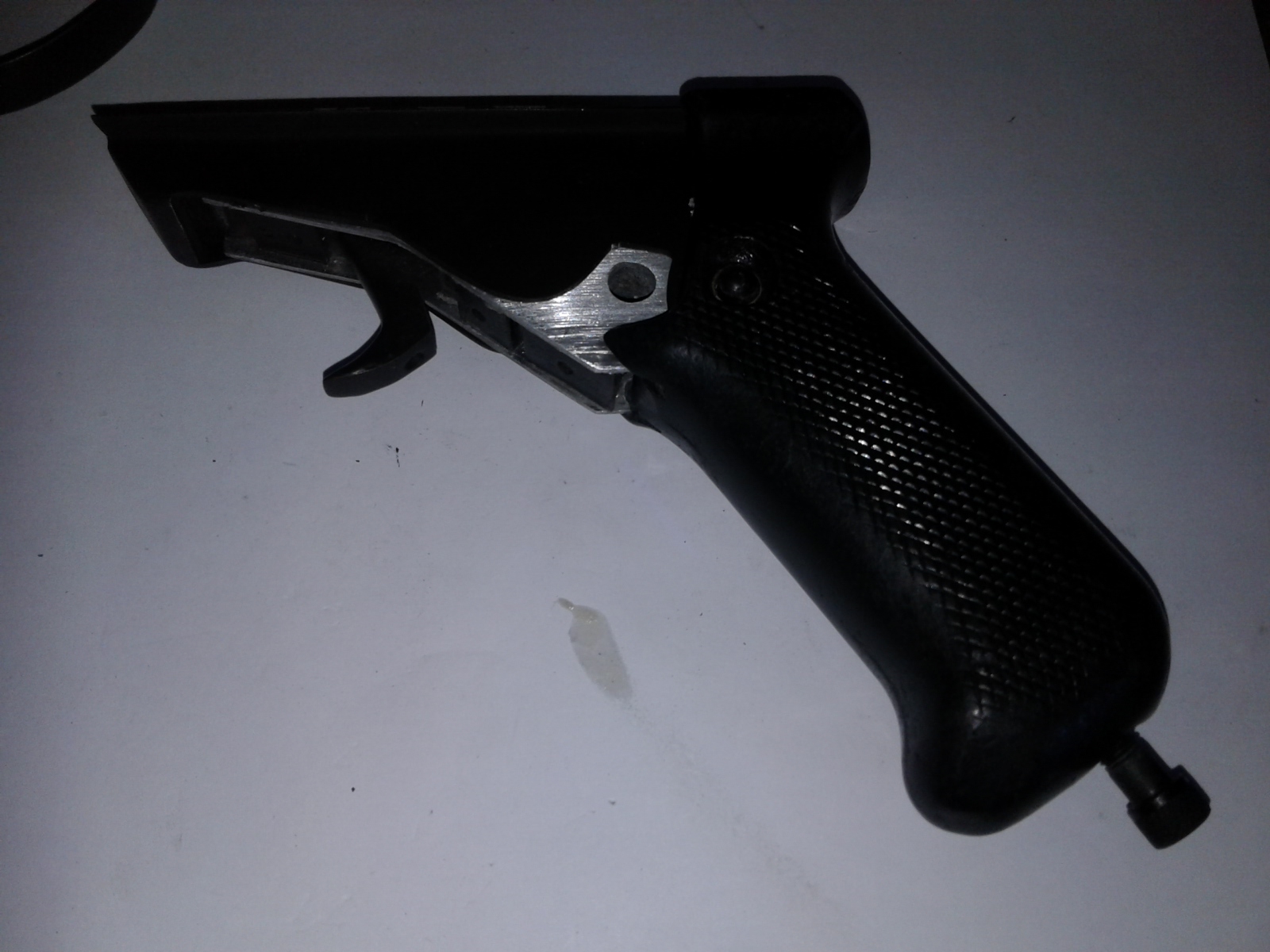

Another shot.
Another shot.

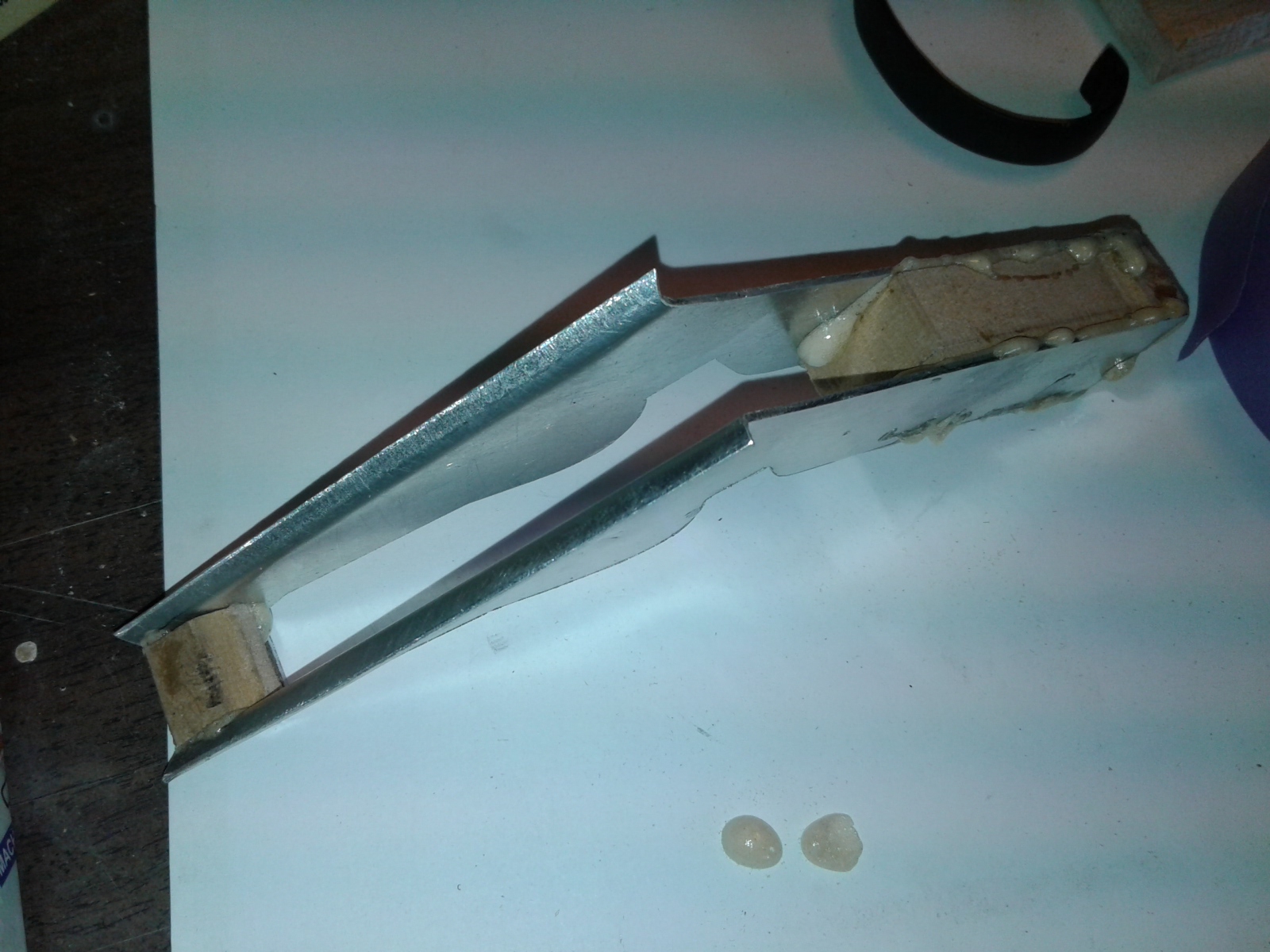

Using blocks of MDF to sandwich between the left and right sides of the grip handle
Using blocks of MDF to sandwich between the left and right sides of the grip handle

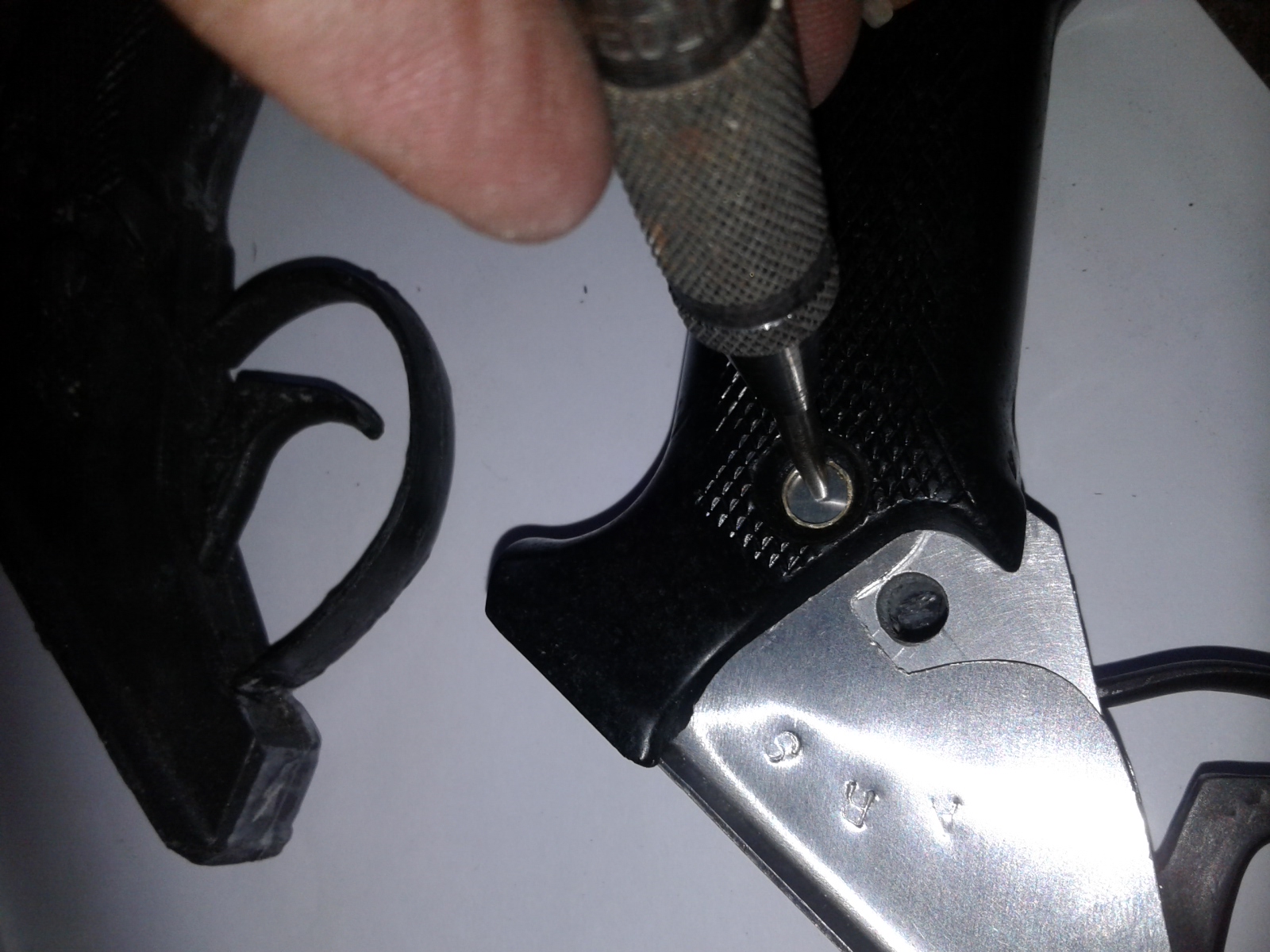

Using a center punch to position hole for trigger grip retaining pin
Using a center punch to position hole for trigger grip retaining pin
Top
User avatar
TIE1138
Lieutenant
Lieutenant
Posts: 120
Joined: Sat Aug 08, 2015 10:02 am
Country: New Zealand
Location: Wanganui

Re: My E11 Blaster Build.WIP

Post by TIE1138 »

Thought I would post some more pics to keep up with construction.
Attachments
I am now working on the Folding Stock. Here I have replaced the cast arms with those made from Aluminium for strength.
I am now working on the Folding Stock. Here I have replaced the cast arms with those made from Aluminium for strength.

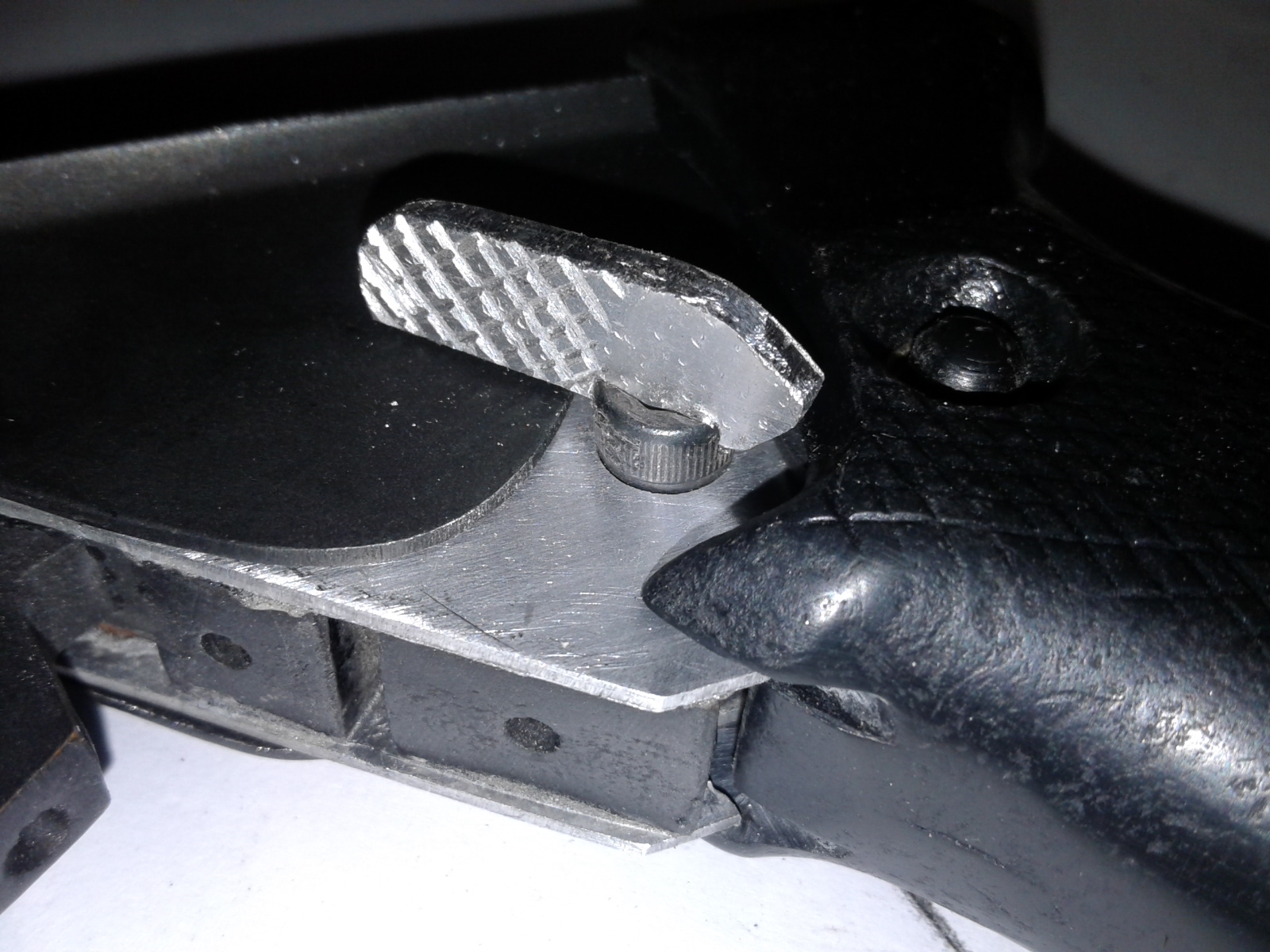

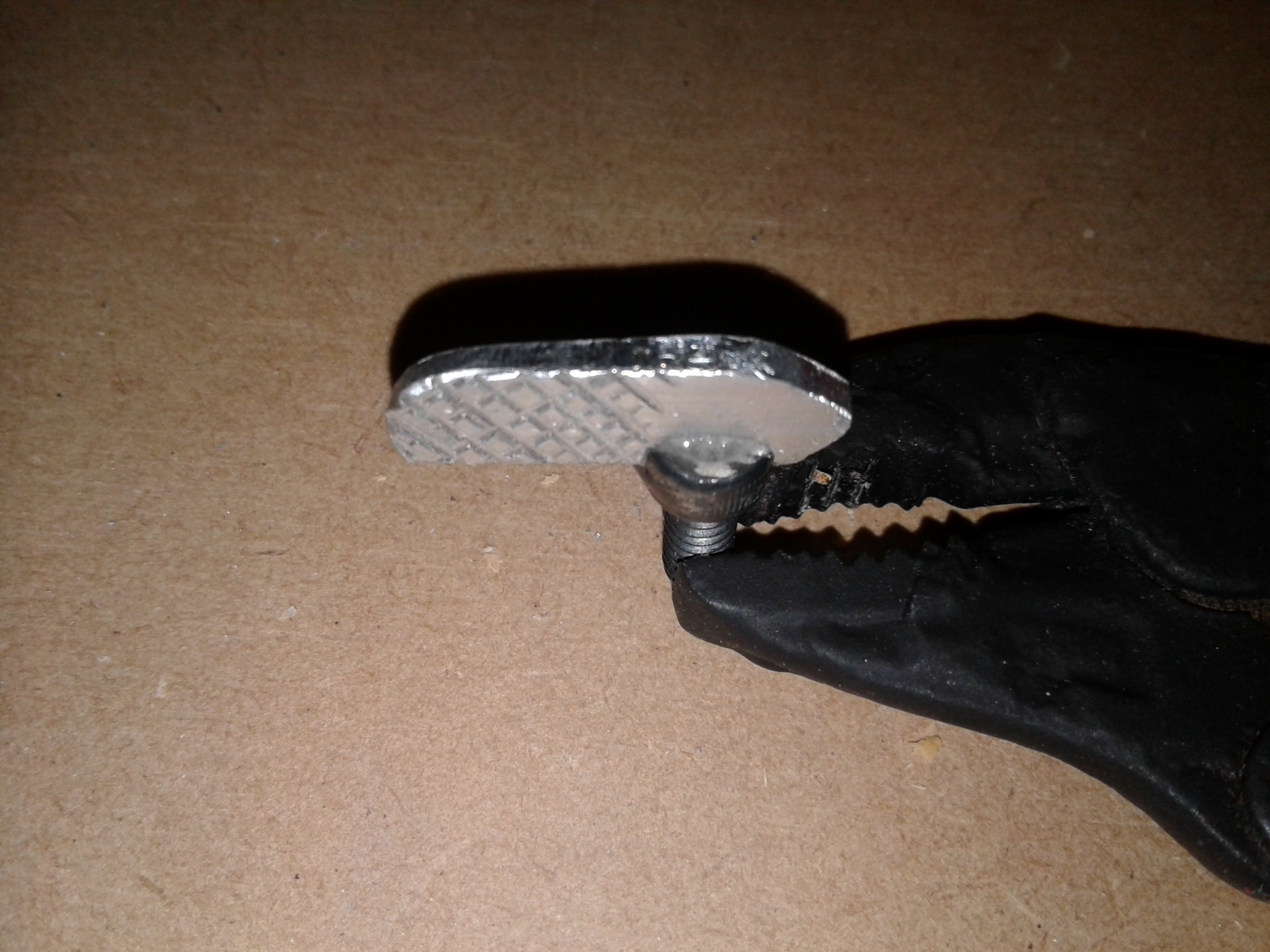

Made the selector by cutting a groove in the top of a Cap Screw and then gluing the plate into it. The grooves in the plate were done with a cutting disc.
Made the selector by cutting a groove in the top of a Cap Screw and then gluing the plate into it. The grooves in the plate were done with a cutting disc.
I used a 3mm letter punch set to mark out the A R and S but I will need to do them again to try and get them crisp.
I used a 3mm letter punch set to mark out the A R and S but I will need to do them again to try and get them crisp.
Top
User avatar
Blaxmyth
Commander
Commander
Posts: 231
Joined: Fri Oct 08, 2010 9:13 am
Country: New Zealand
Location: Wanganui

Re: My E11 Blaster Build.WIP

Post by Blaxmyth »

Very nice work with the selector lever!
Top
User avatar
MattG
Site Admin
Site Admin
Posts: 4921
Joined: Tue Nov 10, 2009 5:46 am
Country: New Zealand
Location: Auckland

Re: My E11 Blaster Build.WIP

Post by MattG »

That's some next level detailing.
Top
User avatar
TIE1138
Lieutenant
Lieutenant
Posts: 120
Joined: Sat Aug 08, 2015 10:02 am
Country: New Zealand
Location: Wanganui

Re: My E11 Blaster Build.WIP

Post by TIE1138 »

Thanks guys. I am nearly finished would you believe. :D
Attachments

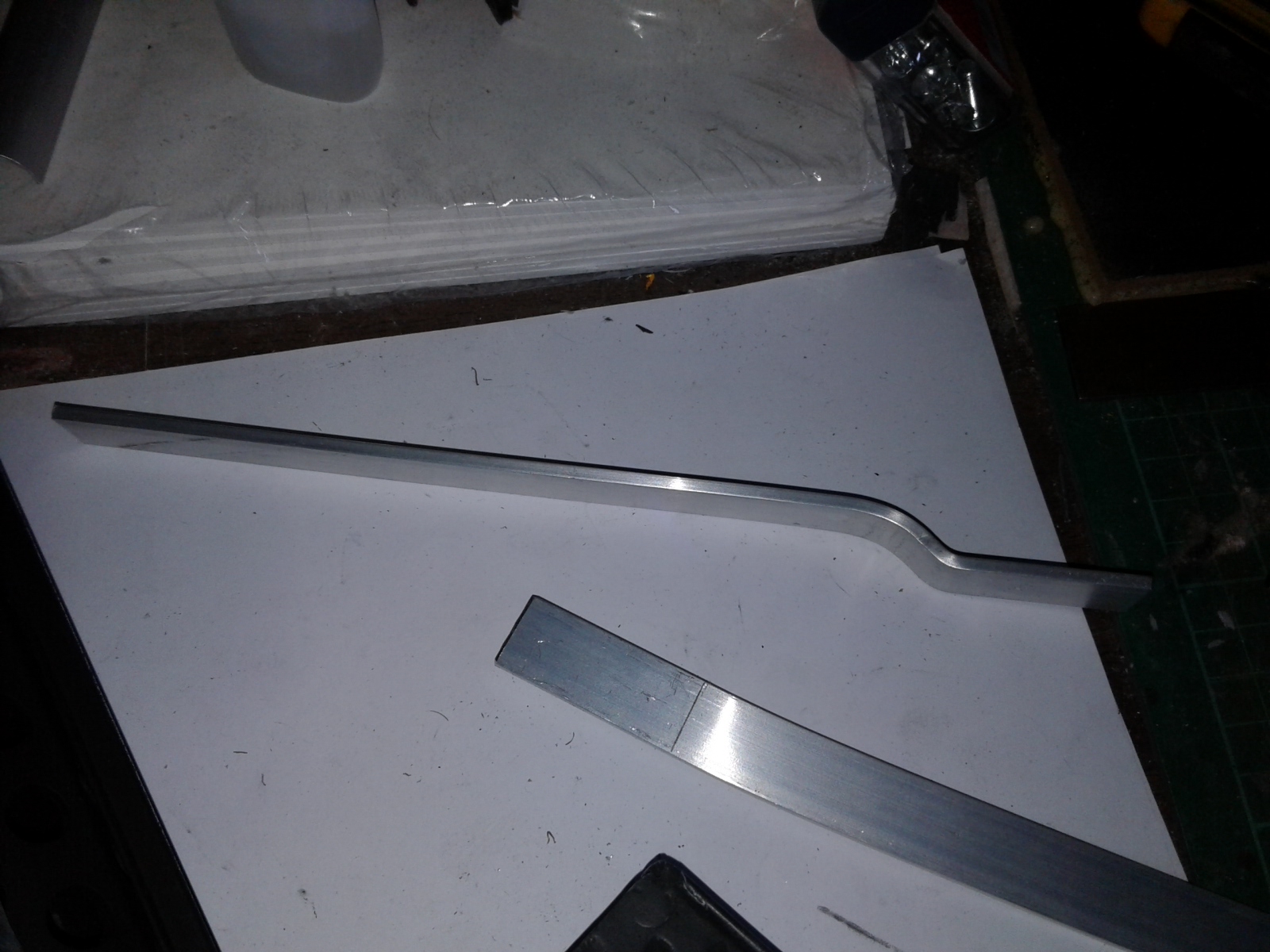

Starting to bend and shape the flats. Ali works so nicely when distressing.
Starting to bend and shape the flats. Ali works so nicely when distressing.
Both sides done ready for the Aluminium flats
Both sides done ready for the Aluminium flats

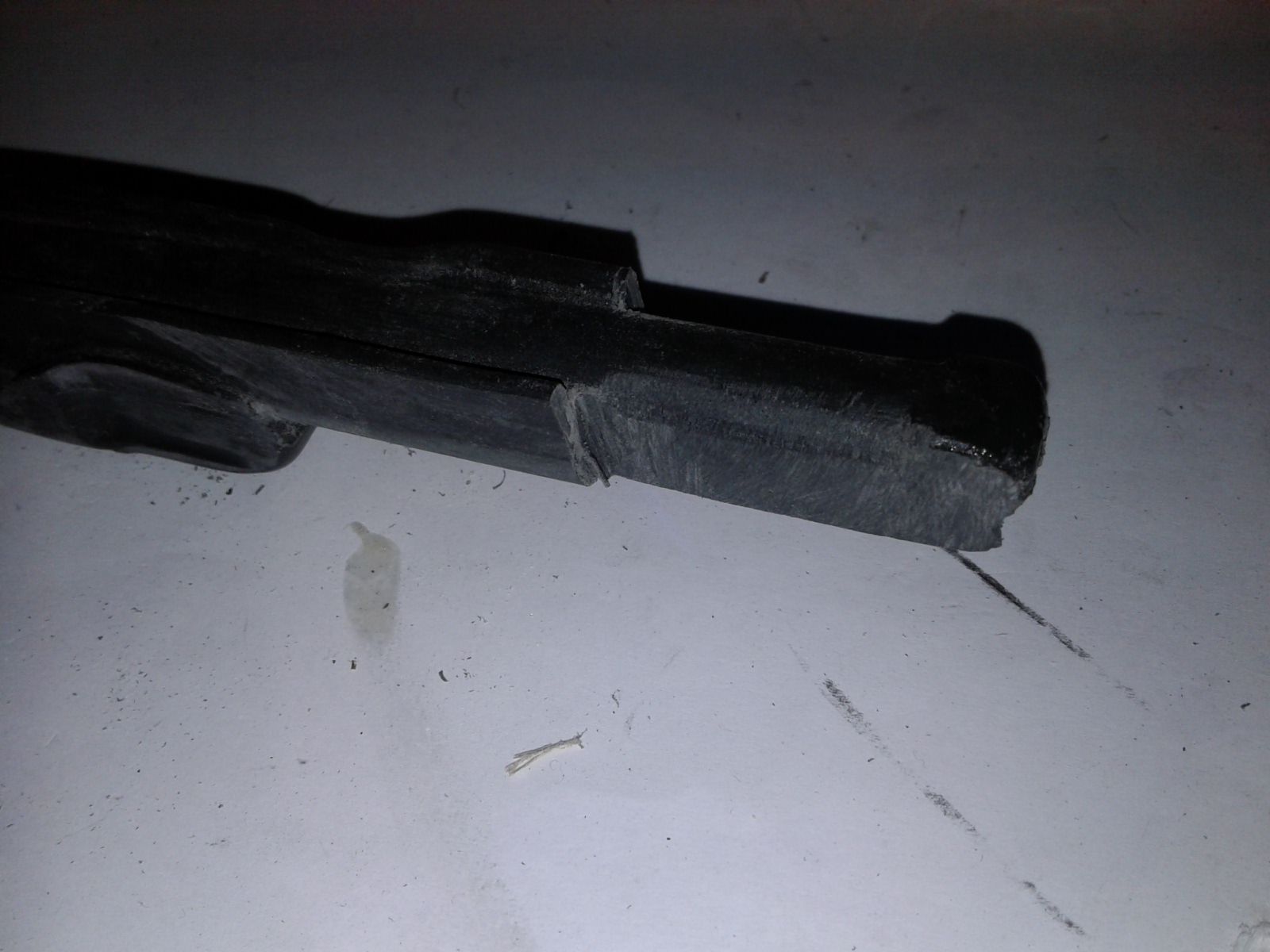

Filing down the sides of the cast stock frame
Filing down the sides of the cast stock frame
The new improved trigger guard made of thicker Ali.
The new improved trigger guard made of thicker Ali.
