Tusken metal parts experiment

Post by Blaxmyth »

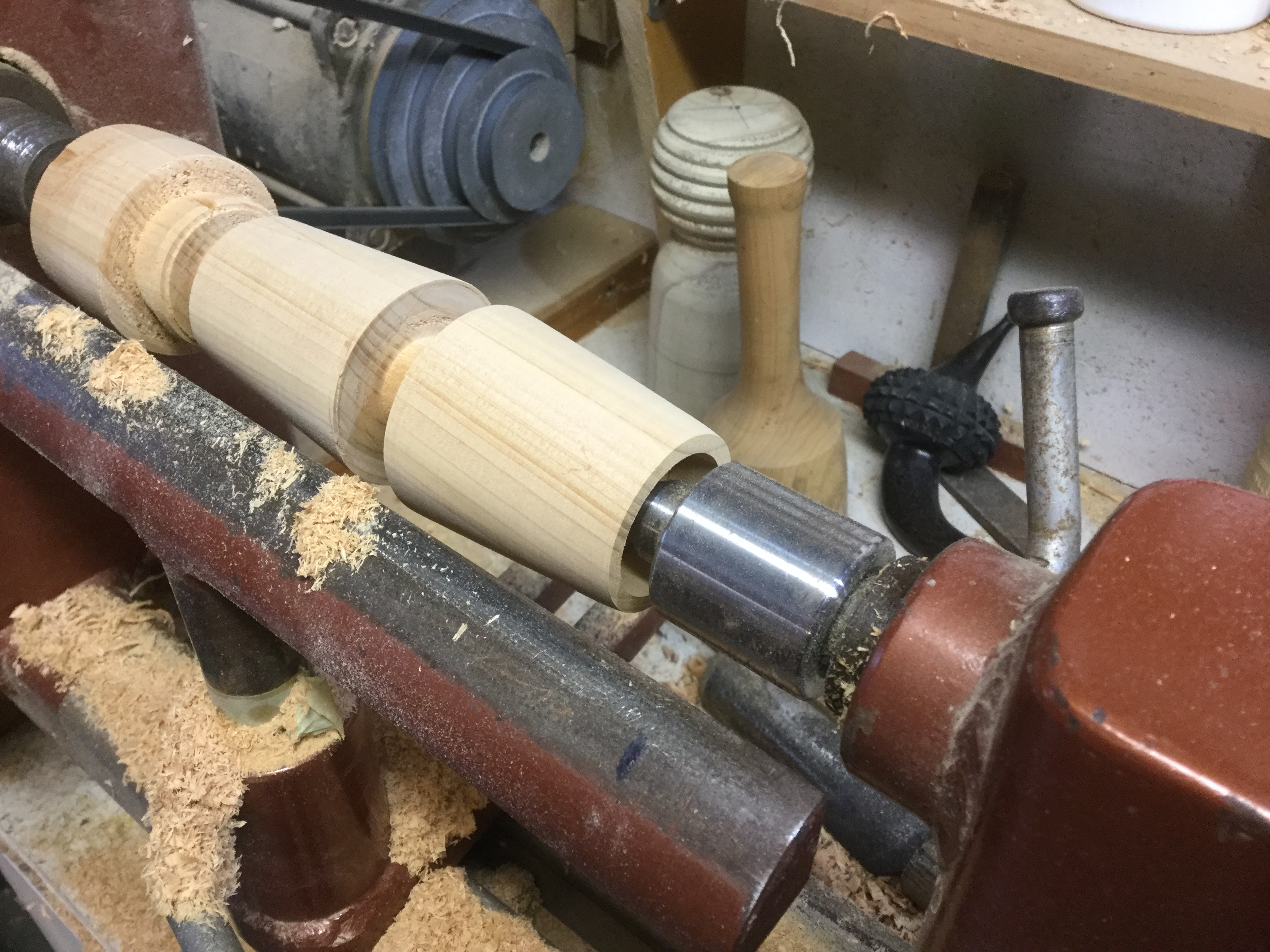

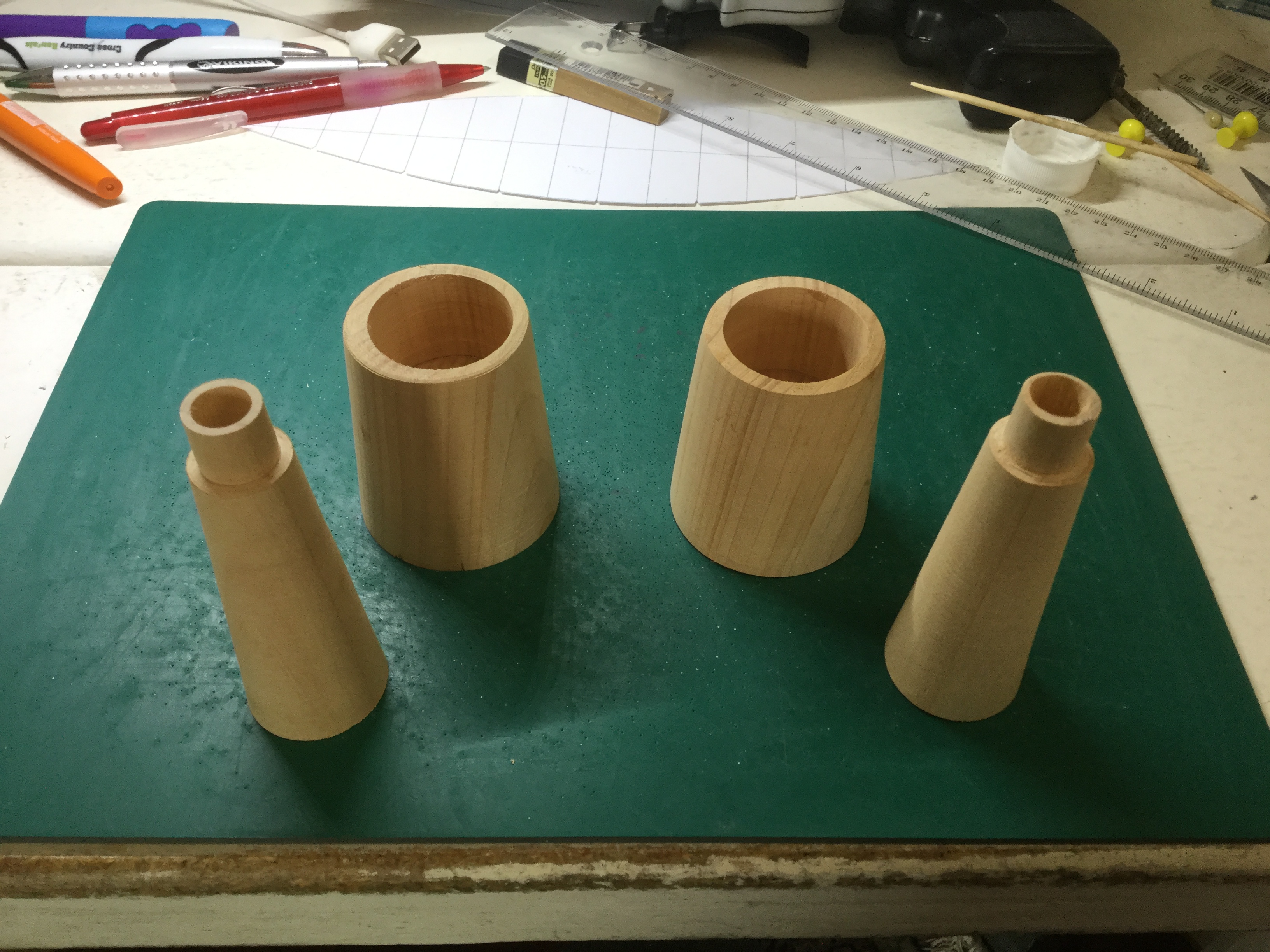

Having been seized with the notion that I must build a Tusken costume and cast the metal parts in aluminium, I've been preparing by turning a few pieces on the wood lathe. I've already managed to turn aluminium by hand on the wood lathe, so the next step is to cast some scrap and try making the spikes, tusks and eye stalks. Well, that's the plan anyway. The wood prototypes turned out ok, so here's hoping.
I've promised my son-in-law that we'll each cast a set at Christmas, so better get cracking. Wish me luck! :)
User avatar
MattG
Site Admin
Site Admin
Posts: 4921
Joined: Tue Nov 10, 2009 5:46 am
Country: New Zealand
Location: Auckland

Re: Tusken metal parts experiment

Post by MattG »

They look very nice.

Would love to do a tusken mask myself at some point... the picture of 3 sandpeople in the "Star Wars Storybook" from my childhood (below) is one of those images burned into my nostalgia circuits.
Attachments
User avatar
Blaxmyth
Commander
Commander
Posts: 231
Joined: Fri Oct 08, 2010 9:13 am
Country: New Zealand
Location: Wanganui

Re: Tusken metal parts experiment

Post by Blaxmyth »

Thanks, Matt.

Those three Tuskens are certainly iconic. I didn't realise how different they were until I started this latest project.

Made some more progress today, cutting and welding the crucible for the aluminium. If we get some fine weather, I'll be able to test it soon...
User avatar
badges2nz
High Colonel
High Colonel
Posts: 1047
Joined: Fri Jul 23, 2010 11:35 am
Country: New Zealand
Location: Otaki

Re: Tusken metal parts experiment

Post by badges2nz »

Sounds like fun times ahead, will you be casting in sand?
Doomsday and Armageddon got together and had a baby and man is it ugly.
User avatar
Blaxmyth
Commander
Commander
Posts: 231
Joined: Fri Oct 08, 2010 9:13 am
Country: New Zealand
Location: Wanganui

Re: Tusken metal parts experiment

Post by Blaxmyth »

badges2nz wrote:Sounds like fun times ahead, will you be casting in sand?
Yep, green sand - trying the recipe of 85% white sand mixed with powdered kitty litter, which is bentonite clay. Been meaning to try it for ages. I'll use the coal forge as it produces more heat than my gas forge.

Will post progress pics as I go.
User avatar
TIE1138
Lieutenant
Lieutenant
Posts: 120
Joined: Sat Aug 08, 2015 10:02 am
Country: New Zealand
Location: Wanganui

Re: Tusken metal parts experiment

Post by TIE1138 »

Looking forward to seeing how this turns out, Phil. :)
User avatar
Blaxmyth
Commander
Commander
Posts: 231
Joined: Fri Oct 08, 2010 9:13 am
Country: New Zealand
Location: Wanganui

Re: Tusken metal parts experiment

Post by Blaxmyth »

Some more progress. I've bought a bag of kitty litter, and borrowed my wife's mortar and pestle to crush it to powder. Ideally you would use a blender, but don't want to buy an old one until I see how the mortar goes.

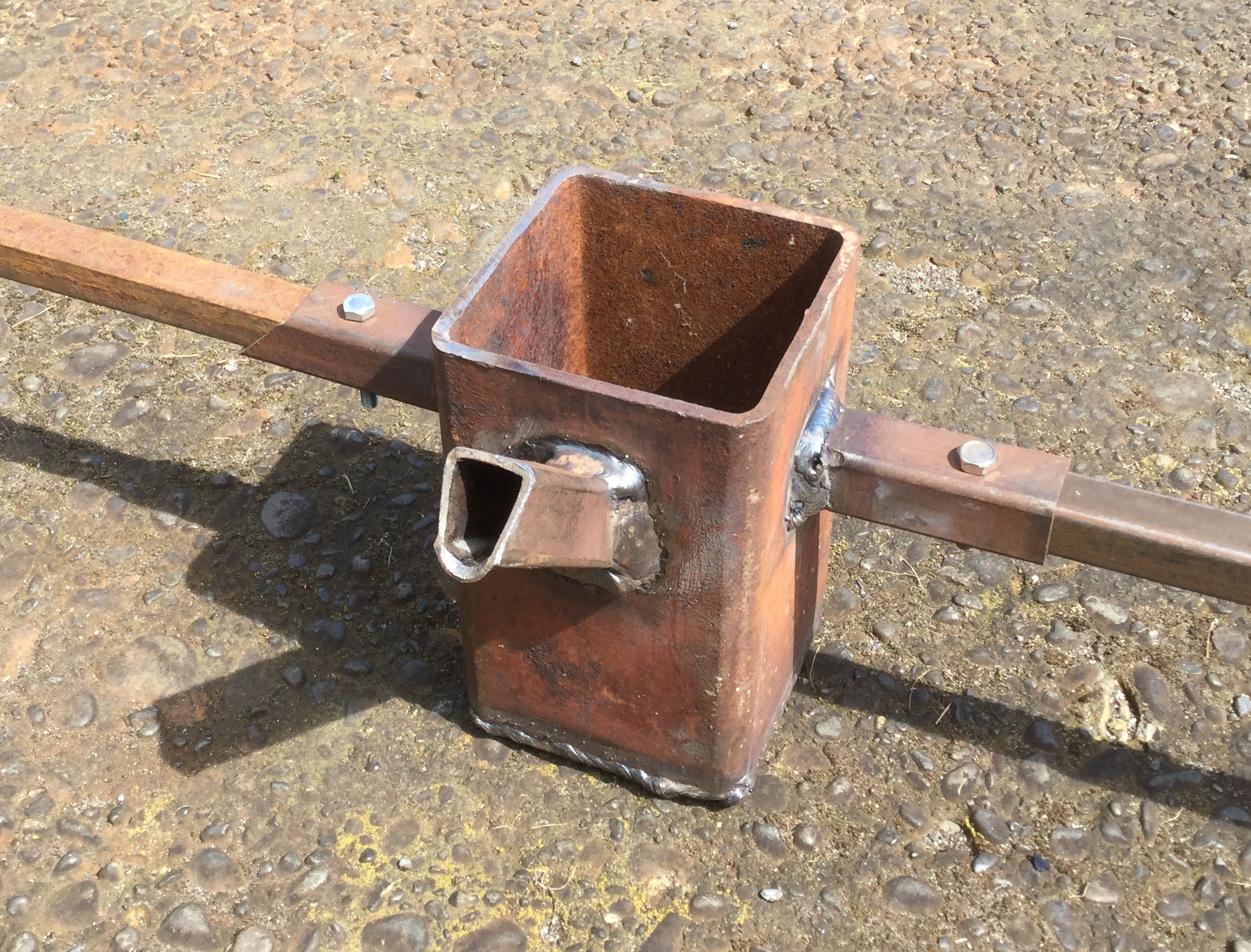

I welded up a heavy duty crucible which will take up to a litre of aluminium - more than enough for this project, but I've always wanted something like this so it was a good excuse to build it.

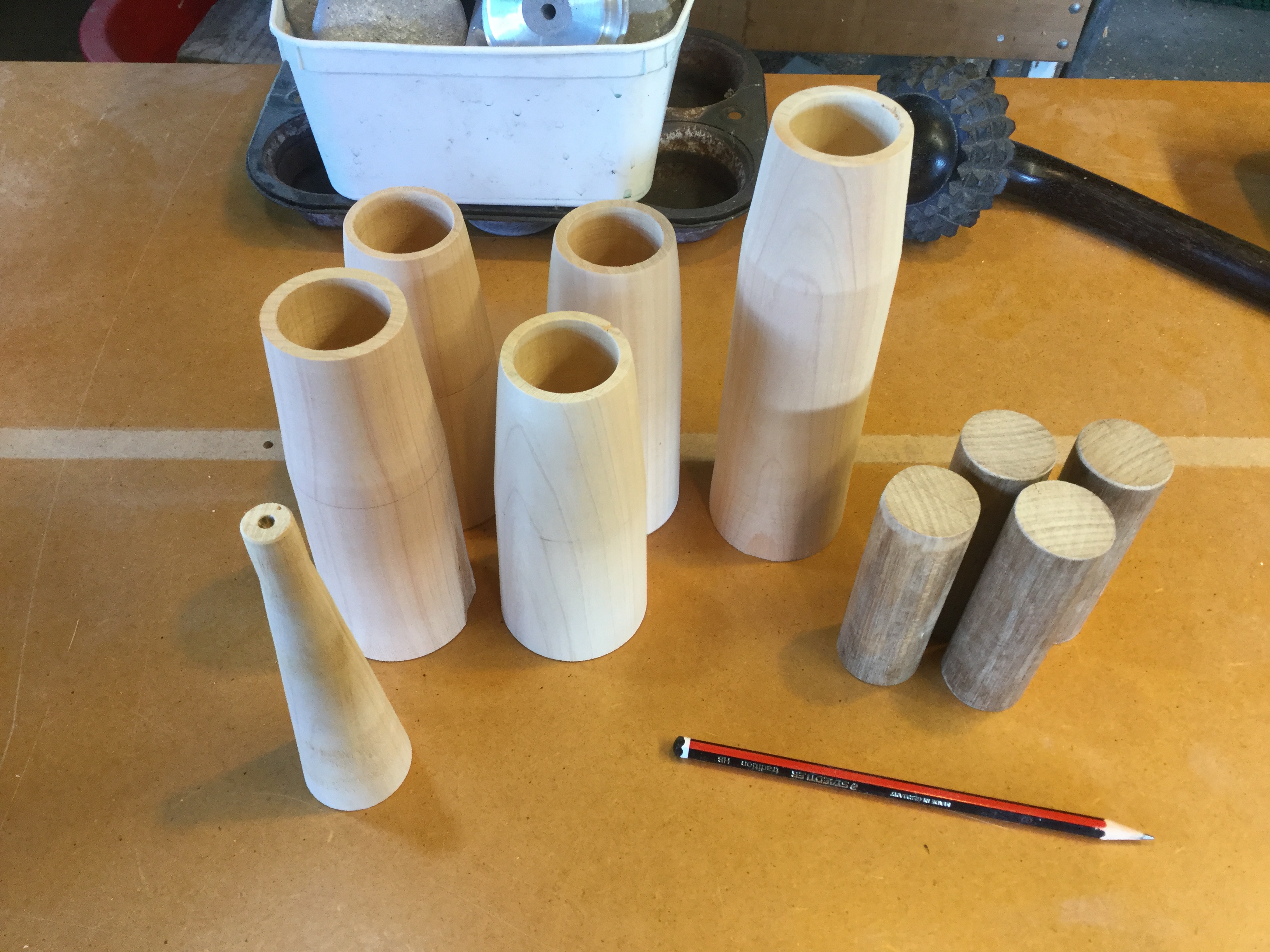

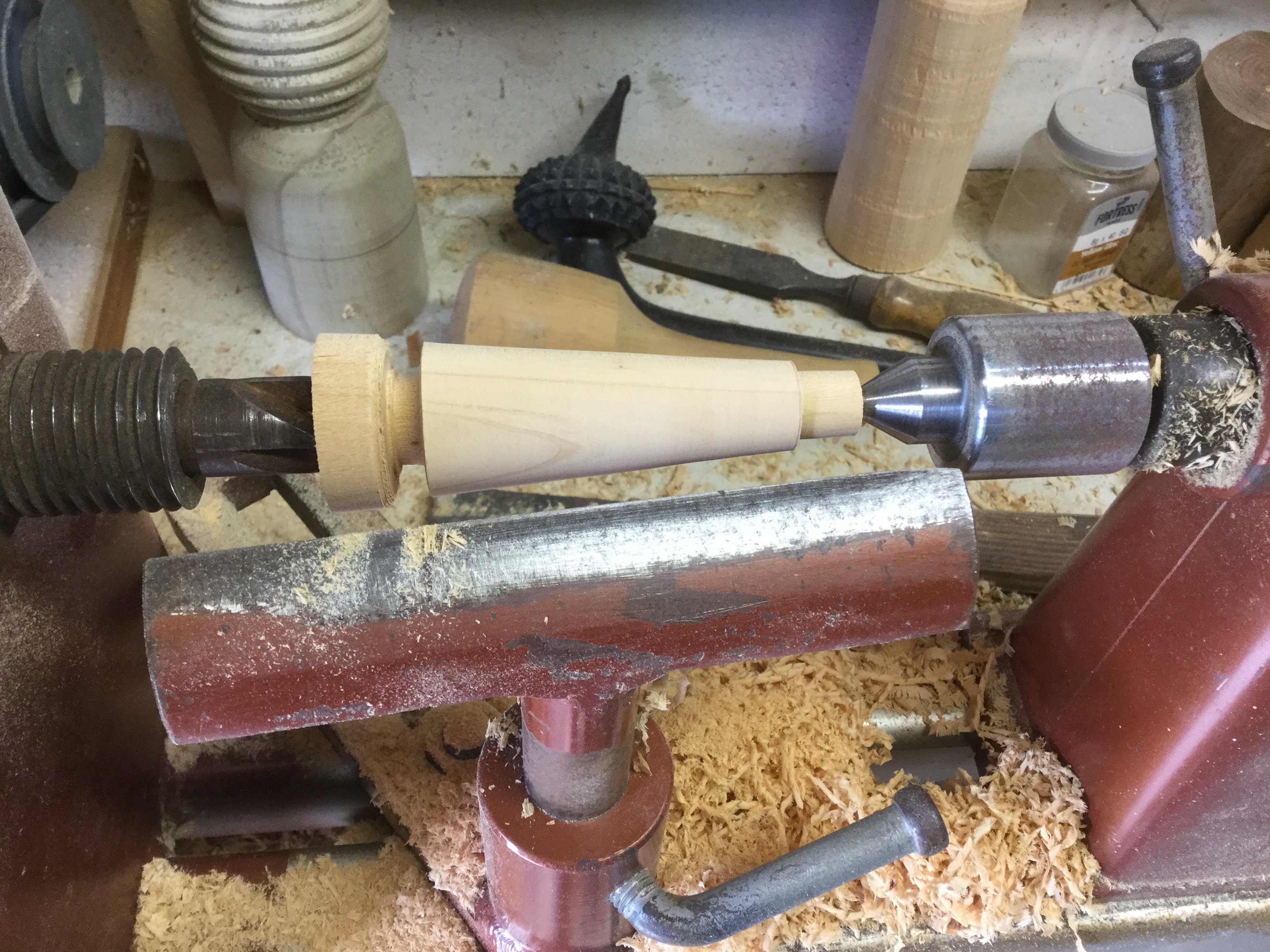

Also, have turned up four eye stalk forms and four tusk forms. These will be embedded into the casting sand, which is packed tightly around them, so that when the forms are gently withdrawn, a hole is left ready to receive the molten aluminium. The wooden plugs will be screwed to the bottom of the mould box and they will form the inside of the eye, hopefully being able to be removed easily afterwards as I will be sanding a slight taper onto them. They will probably char, but I'm regarding that as instant weathering.

Hopefully will have some more progress in a week or so.
User avatar
badges2nz
High Colonel
High Colonel
Posts: 1047
Joined: Fri Jul 23, 2010 11:35 am
Country: New Zealand
Location: Otaki

Re: Tusken metal parts experiment

Post by badges2nz »

I like your crucible, its a pity I've just got rid of a whole lot of aluminum at the scrap metal recyclers along with some brass and copper.
Doomsday and Armageddon got together and had a baby and man is it ugly.
User avatar
Blaxmyth
Commander
Commander
Posts: 231
Joined: Fri Oct 08, 2010 9:13 am
Country: New Zealand
Location: Wanganui

Re: Tusken metal parts experiment

Post by Blaxmyth »

Thanks, badges, but I've got about 10 kg saved up. Plus all my wife's empty beer cans...
User avatar
TIE1138
Lieutenant
Lieutenant
Posts: 120
Joined: Sat Aug 08, 2015 10:02 am
Country: New Zealand
Location: Wanganui

Re: Tusken metal parts experiment

Post by TIE1138 »

Ouch!
